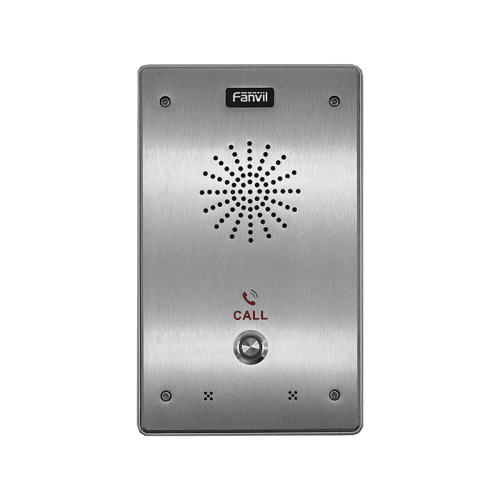

Fanvil SIP 1 Button IP65 Intercom | FAN-I12
- Product SKU: FAN-I12
- Category: Categories, Fanvil, Fanvil IP Door Phones, Intercoms, Newest Products, Voice over IP
Product Description
An intelligent security SIP intercom with HD voice quality, waterproof IP65, anti-tamper housing and two short-circuit output interfaces, designed to prevent miss connections.
Product Features
| HD Voice | √ HD voice - Wonderful aural enjoying with wideband G.722 coding |
| Integrated Electric Switch | 2 |
| DSS Key | 1 or 2 |
| Tamper-Proof | √ |
| Protection Level | IP65 & IK10 |
| Temperature Range | -40°C to 70°C |
Physical Specification
| DSS button (speed dial button) | ✔ |
| RJ45 Ethernet Jacket |
|
| Main Chipset | Broadcom |
| Passive Switch(short-circuit output) | Normally open and normally closed highest at 30V/1A AC/DC |
| Audio Amplifier | 2.5W |
| Output interface for active speaker | ✔ |
| Audio Record output interface | ✔ |
| Embedded Short-circuit input interfaces/ embedded short-circuit output interfaces | 2 |
| Speaker | 2W |
| Cables | CAT5 or better |
| Power Supply | 9~16V/1A DC or POE |
| Shell Material | Aluminum cover and back case |
| Protection Level | IP65 and IK10 |
| Working Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 70°C |
| Working Humidity | 10~90% |
| Overall Dimension | 195x120x39mm (W x H x L) |
| Packaging Dimension | 260x165x62mm (W x H x L) |
| Package weight | 0.85Kg |
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
Product Description
An intelligent security SIP intercom with HD voice quality, waterproof IP65, anti-tamper housing and two short-circuit output interfaces, designed to prevent miss connections.
Product Features
| HD Voice | √ HD voice - Wonderful aural enjoying with wideband G.722 coding |
| Integrated Electric Switch | 2 |
| DSS Key | 1 or 2 |
| Tamper-Proof | √ |
| Protection Level | IP65 & IK10 |
| Temperature Range | -40°C to 70°C |
Physical Specification
| DSS button (speed dial button) | ✔ |
| RJ45 Ethernet Jacket |
|
| Main Chipset | Broadcom |
| Passive Switch(short-circuit output) | Normally open and normally closed highest at 30V/1A AC/DC |
| Audio Amplifier | 2.5W |
| Output interface for active speaker | ✔ |
| Audio Record output interface | ✔ |
| Embedded Short-circuit input interfaces/ embedded short-circuit output interfaces | 2 |
| Speaker | 2W |
| Cables | CAT5 or better |
| Power Supply | 9~16V/1A DC or POE |
| Shell Material | Aluminum cover and back case |
| Protection Level | IP65 and IK10 |
| Working Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 70°C |
| Working Humidity | 10~90% |
| Overall Dimension | 195x120x39mm (W x H x L) |
| Packaging Dimension | 260x165x62mm (W x H x L) |
| Package weight | 0.85Kg |
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
