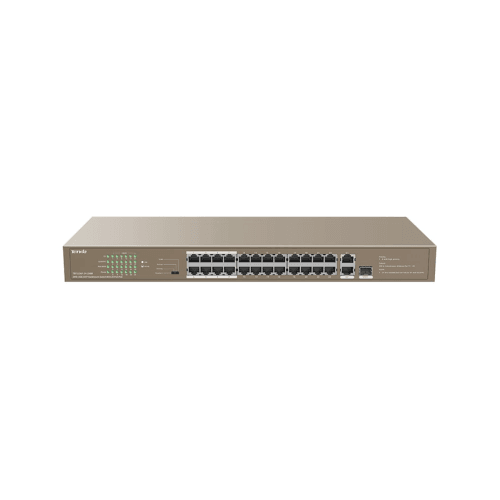

Tenda 24-Port PoE Switch 250W | TEF1126P-24-250W

Product Description

TEF1126P-24-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.

Product Features:

Flexible Networking With Less Breakdown
It provides 24*FE+2*GE/1SFP. The 1-24 ports support AF/AT standard PoE power supply mode, which can intelligently identify the power receiving equipment.The Gigabit uplink port can be used for short-distance networking. With one 1000 Mbps combo SFP slot, the switch can meet the current demandfor uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM,the switch supports a maximum transmission distance up to 20km.

The Surveillance Transmission Stable And Smooth
The product has 4M buffer, which is twice larger than the similars. The maximum output of a single port is 30W, and the whole device is 250W. When used alone, it can provide data transmission and power for 24 PoE IP cameras, APs, etc. Extraordinary quality, favored by engineering.

6KV Excellent Lightning Protection
The switch offers various safety and protection types, including 6 KV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by inductive thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.

230W High Power Output,Diversified Applications
Providing 24 100M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. Not afraid of burst traffic, avoid power failure & restart, and it can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.

Downloads

Product Inquiry

Please send an email to sales@switchcom.co.za for pricing.
