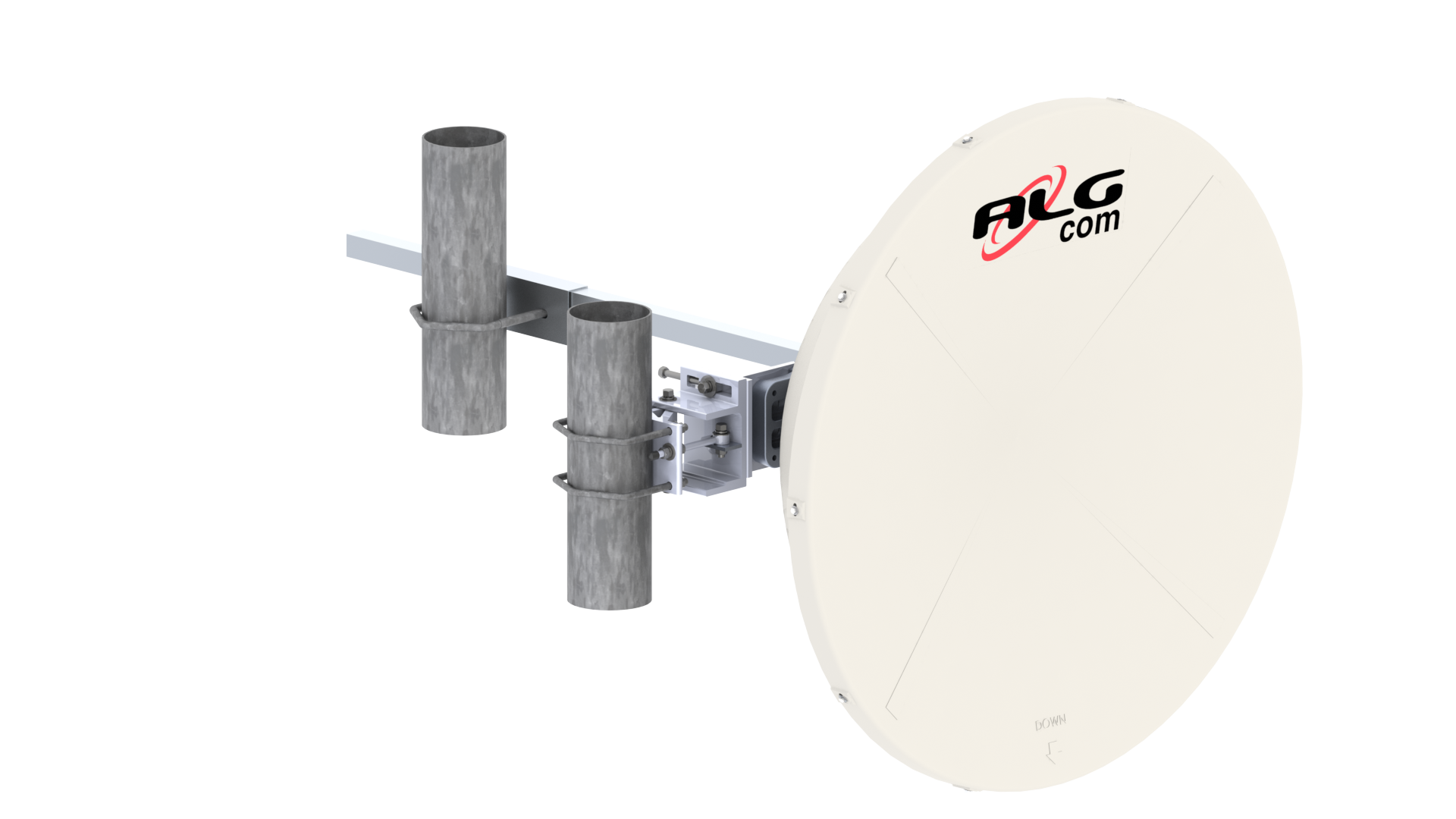

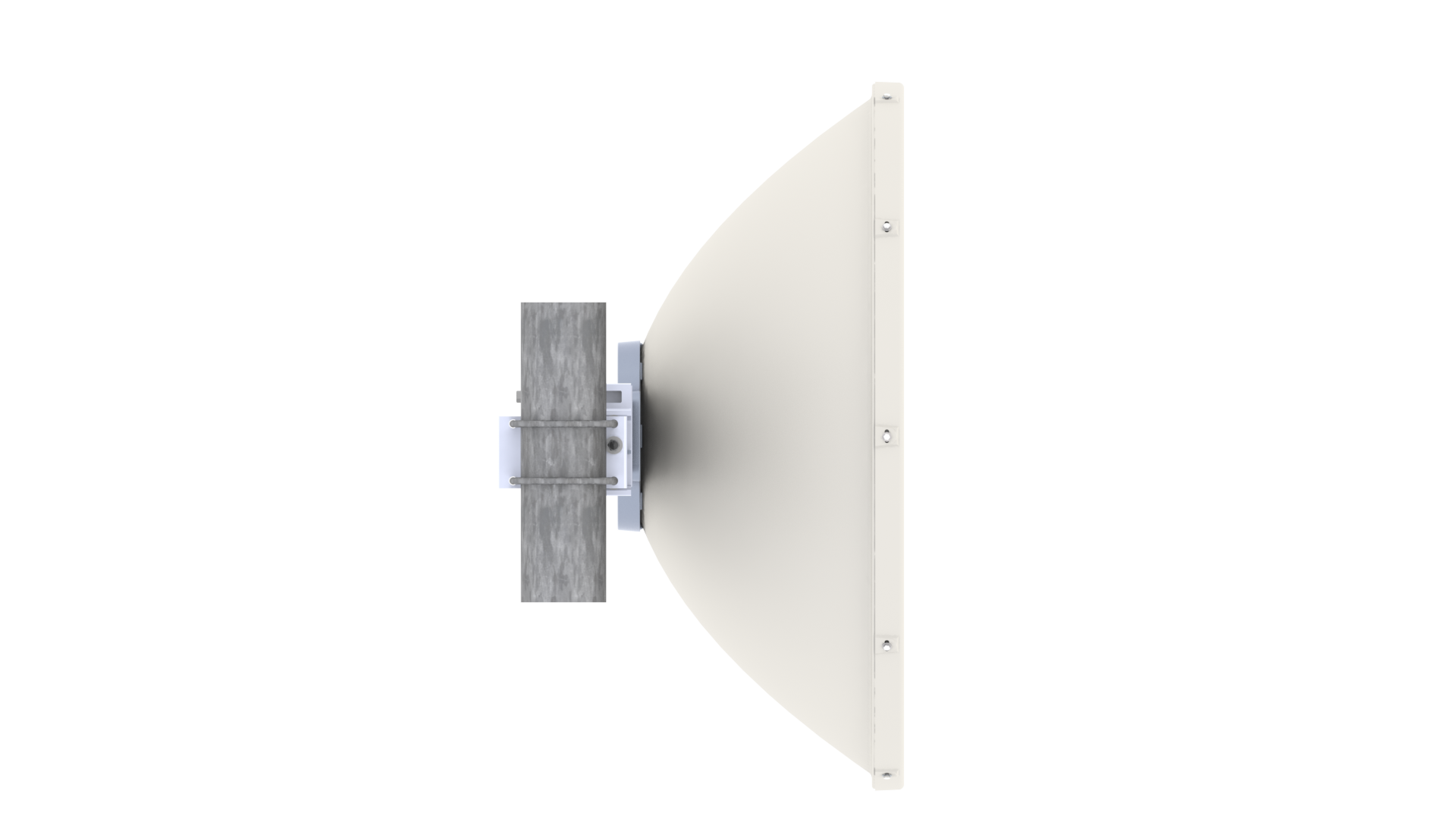

ALGcom 4.9-6.425GHz FULL BAND PARABOLIC | UHP-5800-32-09
- Product SKU: UHP-5800-32-09
- Category: ALGcom - High Performance for your Wireless Links!, ALGcom Parabolic Shielded Antennas, ALGcom Ultra High Performance Shielded Antennas, All, Categories, Wireless Networking, Wireless Networking - Antennas
The ALGcom 4.9-6.425GHz FULL BAND PARABOLIC | UHP-5800-32-09 is a high-performance antenna designed for use in a wide range of applications. With its 4.9-6.425GHz full band frequency, this antenna provides excellent signal quality and range, allowing you to connect to distant networks and devices with ease.
The antenna features a parabolic design, which provides exceptional signal strength and directional control, making it ideal for long-range communication and data transmission.
The antenna is durable and reliable, with a rugged construction that can withstand harsh environments and heavy use. The UHP-5800-32-09 model features a 0.9m length, providing even greater signal strength and range.
Whether you're setting up a wireless network, connecting to a satellite, or transmitting data over long distances, the ALGcom 4.9-6.425GHz FULL BAND PARABOLIC | UHP-5800-32-09 is the perfect choice. Choose this high-performance antenna for all of your wireless networking needs.
Specification
| LINK | Point to Point |
| OPERATING FREQUENCY | 4.9 - 6.425 GHz |
| DIAMETER | 0.9 m |
| PTP DISTANCE | Up to 50km |
| GAIN | 33.2 dBi |
| HALF POWER ANGLE | 3.1 |
| FRONT-TO-BACK RELATIONSHIP | > 55 dB |
| CROSS POLARIZATION INSULATION | > 30 dB |
| POLARIZATION | Double (V and H) or Slant (+- 45°) |
| CONNECTION | Female N or Reverse Female SMA |
| WEIGHT | 15kg |
| WARRANTY | 3 Years |
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
The ALGcom 4.9-6.425GHz FULL BAND PARABOLIC | UHP-5800-32-09 is a high-performance antenna designed for use in a wide range of applications. With its 4.9-6.425GHz full band frequency, this antenna provides excellent signal quality and range, allowing you to connect to distant networks and devices with ease.
The antenna features a parabolic design, which provides exceptional signal strength and directional control, making it ideal for long-range communication and data transmission.
The antenna is durable and reliable, with a rugged construction that can withstand harsh environments and heavy use. The UHP-5800-32-09 model features a 0.9m length, providing even greater signal strength and range.
Whether you're setting up a wireless network, connecting to a satellite, or transmitting data over long distances, the ALGcom 4.9-6.425GHz FULL BAND PARABOLIC | UHP-5800-32-09 is the perfect choice. Choose this high-performance antenna for all of your wireless networking needs.
Specification
| LINK | Point to Point |
| OPERATING FREQUENCY | 4.9 - 6.425 GHz |
| DIAMETER | 0.9 m |
| PTP DISTANCE | Up to 50km |
| GAIN | 33.2 dBi |
| HALF POWER ANGLE | 3.1 |
| FRONT-TO-BACK RELATIONSHIP | > 55 dB |
| CROSS POLARIZATION INSULATION | > 30 dB |
| POLARIZATION | Double (V and H) or Slant (+- 45°) |
| CONNECTION | Female N or Reverse Female SMA |
| WEIGHT | 15kg |
| WARRANTY | 3 Years |
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
