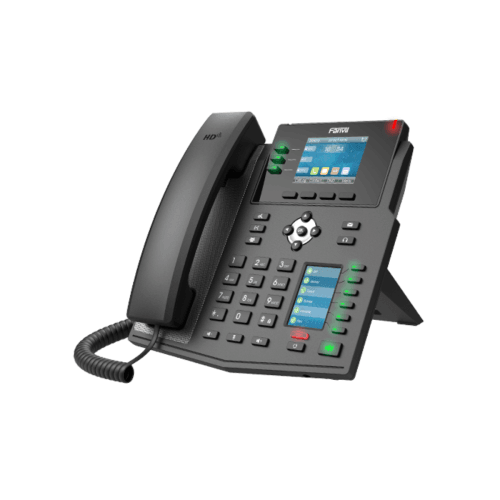

Fanvil 12SIP Enterprise IP Phone | FAN-X4U
Fanvil 12SIP Enterprise IP Phone | FAN-X4U
Fanvil 12SIP Enterprise IP Phone | FAN-X4U

Fanvil 12SIP Enterprise IP Phone | FAN-X4U

Product Description

Fanvil X4U provides the direct access to instructions with two high-resolution 320x240 color displays, which is an ideal option for enterprises to improve the flexibility and have a greater productivity on daily work. Harman speaker and wideband codec of G.722 and Opus in this device deliver you an immersive HD audio experience in both high band and low band with the network.

Product Specifications:



 General Specification
Audio Codec  HD audio with Harman speaker and wideband codec G.722 and Opus
LCD 2.8-inch 320x240-pixel color display
Second LCD 2.4-inch 320x240-pixel color side display
SIP Lines 12
Line Keys 3 with LED Light
DSS Keys 30
PoE
EHS Headset
Bluetooth ✔ via Bluetooth dongle
Wifi ✔ via Wifi dongle
Network Protocol IPv4 / IPv6


 Physical Specification
Main LCD x1 2.8-inch (320x240) Color screen
DSS Key-mapping LCD x1 2.4-inch (240x320)
Keypad
  • 41 keys, including
  • 3 Line keys (With LED Indicator Light)
  • 4 Soft-keys  6 Function keys (Hold, Call forward, Conference, MWI, Headset, Redial)
  • 4 Navigation keys
  • 1 OK key
  • 12 Standard Phone Digits keys
  • 3 Volume Control keys (Up/Down/Mute (Microphone))
  • 6 DSS keys (With LED Indicator Light)
  • 1 Page-Switch (PS) key (With LED Indicator Light)
  • 1 Hands-free key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire  x1
1.5M CAT5 Ethernet Cable x1
Back Rack  x1
Status Indicator Light x1
RJ9 Port x2
  • Handset x1
  • Headset x1
RJ45 Port x2
  • Network x1
  • PC x1 (Bridged to Network)
USB2.0 Port x1 Standard A, Connect with USB dongle(BT or Wi-Fi) or Flash Driver
Safety Keyhole  x1
DC Power Input 5V/2A
Power Consumption (PoE) 1.7W~10.46W
Power Consumption (Adapter) 1.38W~9.13W
Working Temperature 0~45℃
Working Humidity 10~95%
Installation
  • Desktop Stand
  • Wall-mounted (need an additional wall hanging parts)
Color Black
Device Dimensions
  • Desktop Stand (Angles 1): 214x188.6x181.1 mm
  • Desktop Stand (Angles 2): 214x180.5x190.1 mm
  • Wall-mounted: 214x119.4x219.1 mm
Gift Box Dimensions 315x228x84 mm
Outer CTN Dimensions 476x440x335 mm (10 PCS)





Downloads
