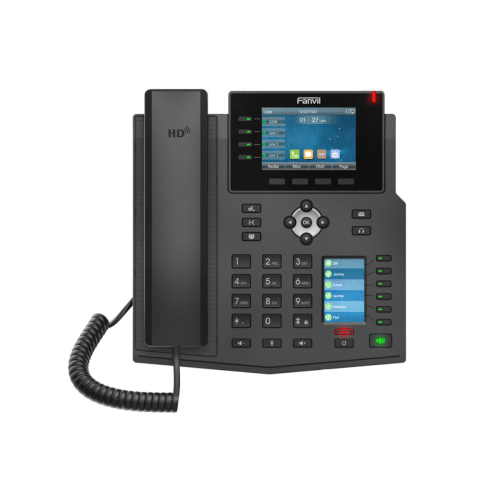

Fanvil 16SIP Gigabit Bluetooth PoE VoIP Phone | FAN-X5U
Fanvil 16SIP Gigabit Bluetooth PoE VoIP Phone | FAN-X5U
Fanvil 16SIP Gigabit Bluetooth PoE VoIP Phone | FAN-X5U

Fanvil 16SIP Gigabit Bluetooth PoE VoIP Phone | FAN-X5U

Product Description

Fanvil's FAN-X5U is an enterprise-level, two-screen IP Phone. With all the necessary VoIP features and other extended features like EHS headset and Wi-Fi dongle, it provides a high-quality experience for the user.

 Products Specifications



  General Specification
SIP Lines  16
Line Keys
HD Voice √ HD Handset, HD speaker
LCD 1x3.5” main color display, 1x2.4” side color displays for DSS keys
Bluetooth  √ Built-in for Headset
WIFI Via USB Dongle
EHS Headset Support
DSS Keys 30
PoE
Conference  3-way
Platform Compatibility Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.


Physical Specification
Main LCD x1 3.5-inch (480x320) Color Screen
DSS Key-mapping LCD x1 2.4-inch (240x320) Color Screen
Keypad
  • 4 Line keys (With LED Indicator Light)
  • 4 Soft-keys
  • 6 Function keys (Hold, Call forward, Conference, MWI, Headset, Redial)
  • 4 Navigation keys
  • 1 OK key
  • 12 Standard Phone Digits keys
  • 3 Volume Control keys (Up/Down/Mute (Microphone))
  • 6 DSS keys (With LED Indicator Light)
  • 1 Page-Switch (PS) key (With LED Indicator Light)
  • 1 Hands-free key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire  x1
1.5M CAT5 Ethernet Cable x1
Back Rack  x1
Status Indicator Light x1 (Red)
RJ9 Port x2
  • Handset x1
  • Headset x1
RJ45 Port x2
  • Network x1
  • PC x1 (Bridged to Network)
USB2.0 Port x1 Standard A, Connect with USB dongle(BT or Wi-Fi) or Flash Driver
Safety Keyhole  x1
DC Power Input 5V/2A
Power Consumption (PoE) 1.7W~10.46W
Power Consumption (Adapter) 1.38W~9.13W
Working Temperature 0~45℃
Working Humidity 10~95%
Installation
  • Desktop Stand
  • Wall-mounted (need an additional wall hanging parts)
Color Black
Device Dimensions
  • Desktop Stand (Angles 1): 214x188.6x181.1 mm
  • Desktop Stand (Angles 2): 214x180.5x190.1 mm
  • Wall-mounted: 214x119.4x219.1 mm
Gift Box Dimensions 315x228x84 mm
Outer CTN Dimensions 476x440x335 mm (10 PCS)



Downloads
