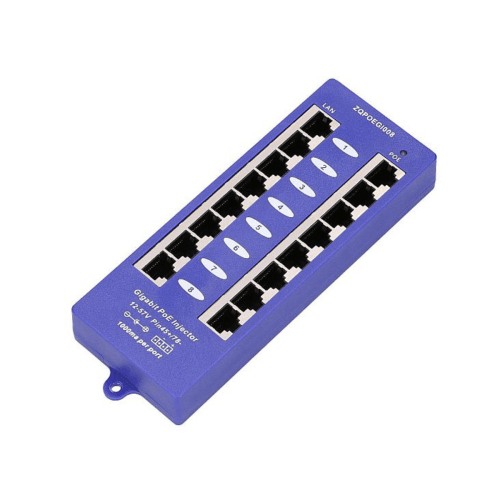

Extralink POE INJECTOR 8 PORT GIGABIT
Extralink POE INJECTOR 8 PORT GIGABIT
Extralink POE INJECTOR 8 PORT GIGABIT

Extralink POE INJECTOR 8 PORT GIGABIT

Features


  • Use with any ethernet switch
  • Flexible power (DC 12V TO 57V)
  • 10/100/1000Mbps fast ethernet
  • Ideal for IP Cameras, VOIP, WiFi
  • 8 Port Injector (8 Lan & 4 Lan+PoE port)

Overview

8 PORT POE INJECTOR supports 10/100/1000M Ethernet, LAN RJ45 sockets is for “Switch/PC/HUB” 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45 (power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power. Passive PoE is composed of 8 set of RJ45 sockets and one 60V DC power jack. Input power requests 90W or more AC to DC power converter. The input DC hole diameter is 2.1mm and the other end OD is 5.5mm.

The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x RJ45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel.



Product specification



Input :

12v~57v DC

Output :

12-57V PER PORT(1A Max)

Data :

1/2 & 3/6 & 4/5 & 7/8

Power :

4/5 & 7/8

Data In :

Connects PC/HUB/Switch

Data rate :

10/100/1000Mbps

Ethernet Cable :

TIA/EIA 568 Cat. 5

Connector :

RJ-45

Weight :

160g

Operating Temperature :

0°C~40°C

Storage Temperature :

-40°C~70°C

Operating Humidity :

10%~80%RH

Storage Humidity :

5%~90%RH

Certification :

CE, FCC

Dimensions :

180mm×60mm×25mm



Downloads



Extralink POE INJECTOR 8 PORT GIGABIT





Product Inquiry


Please send an email to sales@switchcom.co.za for pricing.
