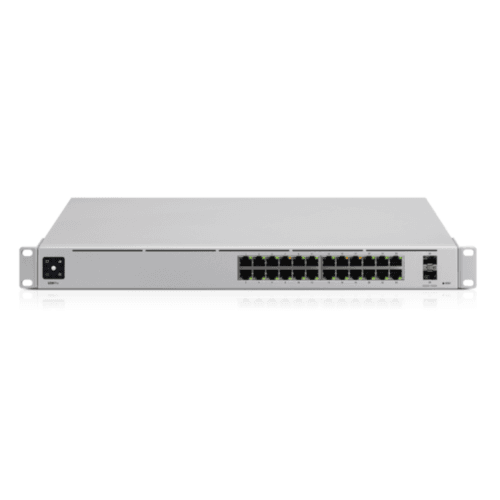

Ubiquiti 24 Port Gigabit 2SFP+ Managed UniFi Switch | USW-Pro-24
- Product SKU: USW-PRO-24
- Category: All, Categories, Networking Devices, Ubiquiti Networks, Wireless & Wired Products, Wireless Networking
Product Description
UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Product Features
- (24) Gigabit RJ45 ports
- (2) 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" touchscreen display
- Managed by UniFi Network Controller
Specifications
| USW-PRO-24 | |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
|
Weight With Brackets |
3.50 kg (7.72 lb) 3.59 kg (7.92 lb) |
|
Interfaces Networking Management |
(24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
|
Power Method Universal Input USP RPS DC Input |
100-240VAC, 50/60 Hz 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 36W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption | 30W |
|
LEDs RJ45 Data Ports SFP+ Data Ports |
Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
Downloads
Product Inquiry
Please send an email to sales@switchcom.co.za for pricing.
